Push-In type Displacement Transducer/ Crack meter & Perimetric Joint meter
MODEL No. IGI - 2002

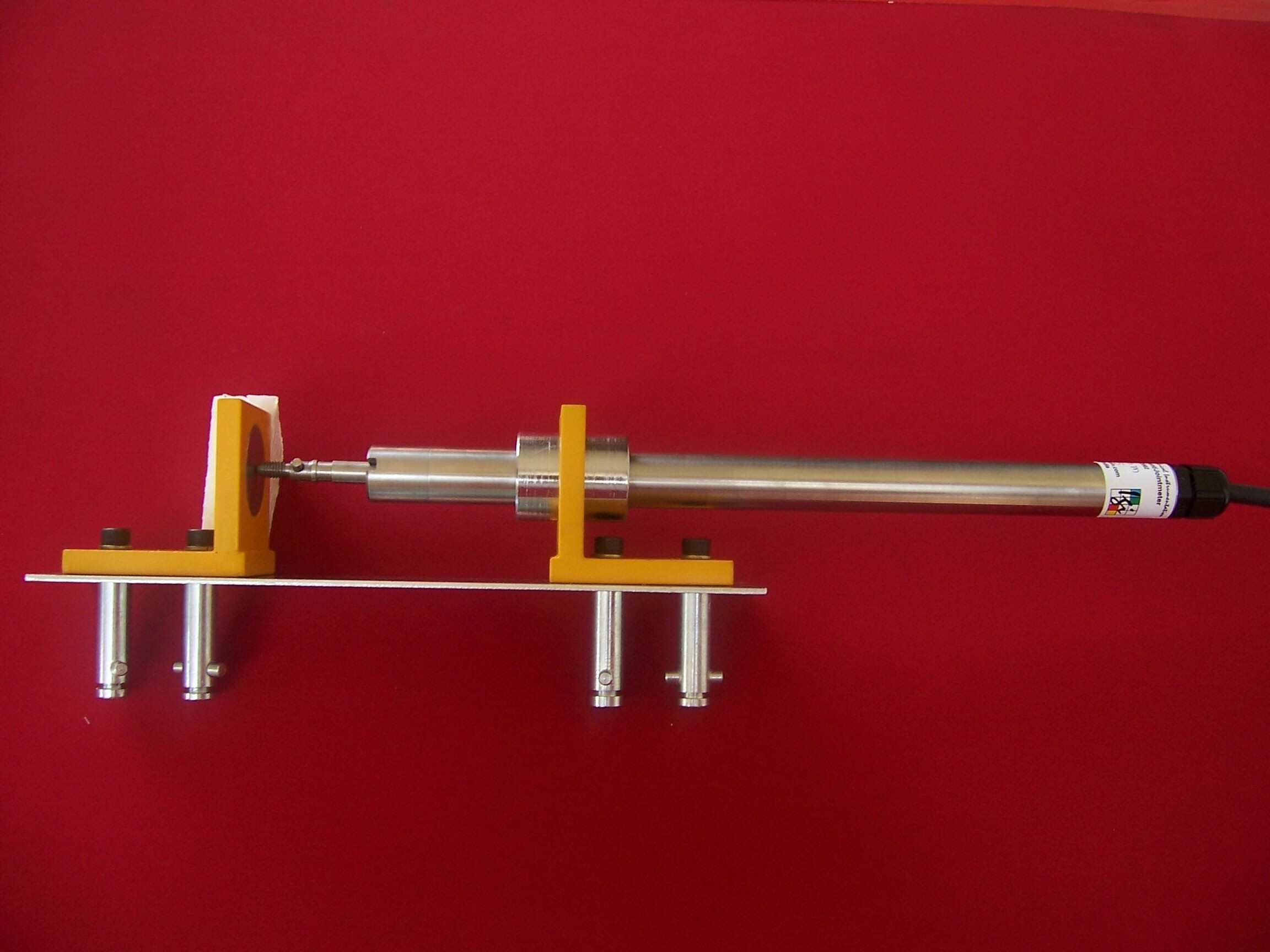

The model IG2002 crackmeter consists of a spring loaded, compression type vibrating wire displacement transducer and two installation brackets. One mounting bracket supports the displacement transducer while the other is anchored across the joint on to the reference surface. The spring-loaded shaft of the displacement transducer is always in contact with the reference surface at the other side of the crack. The sliding rod senses the movement between the two anchors and gives a frequency output which is read by the indicator.

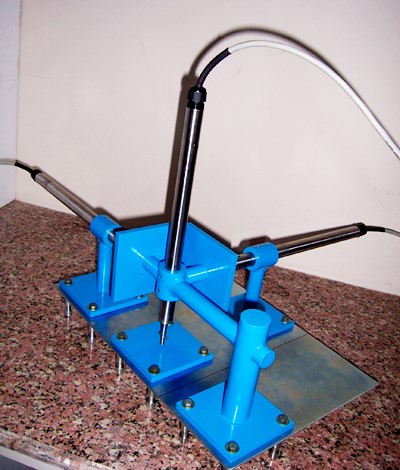

For measurement in three orthogonal directions IG2002XYZ or perimetric joint meter is used. This version has three sets of displacement transducer assemblies installed across the crack in three mutually perpendicular directions. Free movement of the sliding shaft in all directions ensures accuracy of measurement.
SPECIFICATIONS :
| Standard Ranges | 50mm, 100 mm , 150mm. |
|---|---|
| Non-linearity %fs | 1%fs |
| Material (Outer Body) | Stainless steel |
| Operating Temperature | -10 to 60°C |
| Coil Resistance | 140 – 160 Ohm @ 25°C |
| Thermistor | YSI 44005 or equivalent (3k Ohm @ 25°C) |
| Surge Arrestor | Citel 90V Gas Discharge tube |
| Dimension | 20mm dia |
| Cable | 1m, 4 core shielded. |
