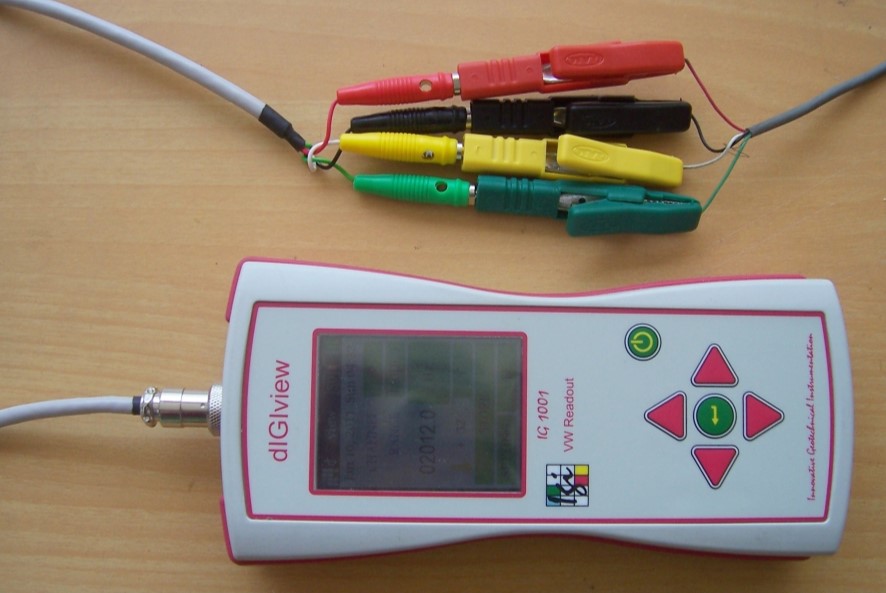

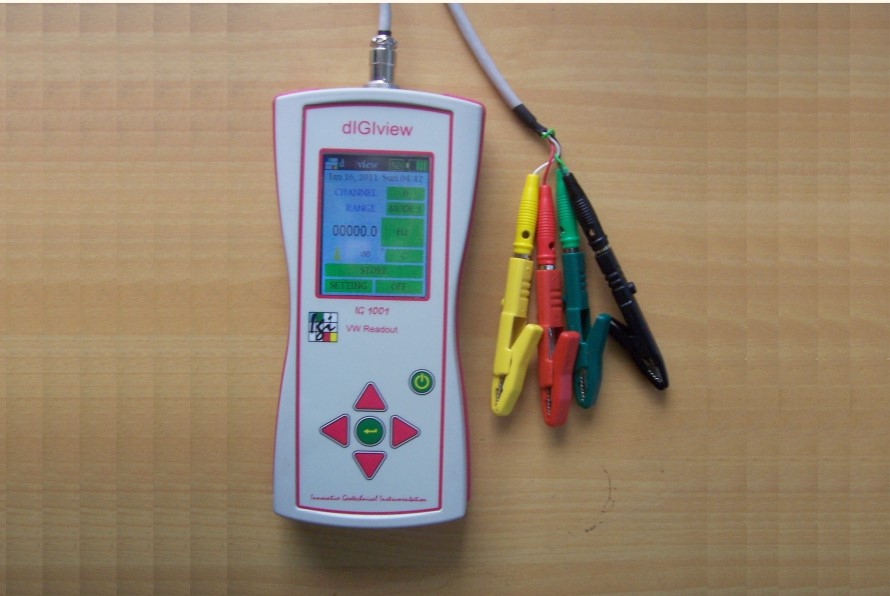

DIGIview(Digital Readout Unit)
MODEL No. IGI - 1001
dIGIview Vibrating Wire readout unit with engineering units display is a advanced microcontroller based indicator for use with Innovative Geotechnical Instrumentation’s range of Vibrating Wire Transducers. It can display the measured frequency in terms of time period, frequency, frequency squared or the value of the measured parameter directly in proper engineering units.
The dIGIview readout can store calibration coefficients of up to 7,999 vibrating wire transducers so that the value of the measured parameter from these transducers can be shown directly in proper engineering units. The user does not have to refer to look up tables or manually calculate the parameter values.
For transducers with a built in interchangeable thermistor, it can also display the temperature of the transducer directly in degree Centigrade.
The readout can store more than 1,00,000 readings in the micro-SD card inserted in the unit. Each reading consists of measured sensor value, temperature in degrees centigrade and the time and date the measurement is stored.
The stored readings can be retrieved by connecting the unit to PC through USB cable. The dIGIview device is identified as mass storage device for the PC. Each store event is stored in separate lines and saved as Microsoft excel document and can be opened with Microsoft Excel software or any other word processing software capable of opening excel document.
Setting up the dIGIview readout is easy as all the prompts and error messages are in plain simple English language.
An internal 3.7V, 3400mAH Li-Ion battery is used to power the indicator. A fully charged new battery provides nearly 30 hours of operation on a single charge. A separate battery charger is provided with the dIGIview readout to charge the internal battery from 110V/220 V AC mains. Alternately, the battery can be charged using PC through USB cable.
The dIGIview readout is housed in a splash proof plastic moulded enclosure with weather-proof connectors for making connections to the vibrating wire transducer and the battery charger.dIGIview .
SPECIFICATIONS :
Following list provides the specifications of dIGIview readout unit:| Sensors Supported | Two wire Vibrating Wire Transducers with 110 to 160 ohms (nominal) sensor coil. |
|---|---|
| Frequency Range | 500 Hz to 6000 Hz in 4 modes Mode 1 – 450 Hz to 1200 Hz - For 125mm strain Mode 2 – 800 Hz to 2000 Hz - For 125mm strain Mode 3 – 1400 Hz to 3500 Hz - For all other IGI sensors Mode 4 – 2400 Hz to 6000 Hz - For Bore hole stress |
| Excitation | Swept frequency excitation at 5V (p-p) |
| Measurement time | 128 cycles |
| Measured parameter | Time period |
| Resolution | 0.01 micro second (In time period display mode) |
| Accuracy | ±(0.006% of reading +0.004 micro sec) |
| Displayed parameters | Second, Hertz, Hz²/1000, Tonnes, kg/cm², millimetre, micro strain (µs), Mega Pascal MPa, Degree Centigrade (°C), Degree (deg), Millimetre water column (mmwc) |
| Accuracy | 0.1% |
| Temperature sensor | Integrated 3K (@ 25C) R-T curve matched thermistor similar to YSI44005 Measurement range -20oC to +50oC |
| Accuracy | 1oC |
| Display | 3.2” Transflective TFT Color LCD Display |
| Resolution | 320 x 240 pixels |
| Keys | Environmentally sealed membrane keypad 5 keys for navigation + 1 power button |
| Memory | 32 Mega bit internal memory Upto 16 Giga byte external memory (micro SD Card) |
| Number of channels | 7,999 |
| Number of readings | More than 1,00,000 each with one parameter, temperature reading, date and time stamp. |
| Real time clock | In-built |
| Stored file format | Microsoft Excel |
| Data transfer | mini USB connected to PC External card reader to read micro-SD card |
| Battery | 3.7V, 3400mAH Lithium-Ion |
| Battery usage | 10 hours of continuous usage on full charge 300 hours in standby mode |
| Battery charging | Through mini USB connector |
| Charging methods | From PC through USB port From adapter 110V ~ 220V AC to 5V DC with mini USB connector (Included with package) |
| Charging time | 3 hours with the supplied charger or 6 hours with PC |
| Sensor connector | Circular splash proof 4-pin connector |
| Enclosure | ABS+PU impact resistant plastic moulded housing |
| Dimensions | 203.2 mm x 98.0 mm x 34.8 mm (L x B x H) |
| Operating temperature | 0C to +50C |
