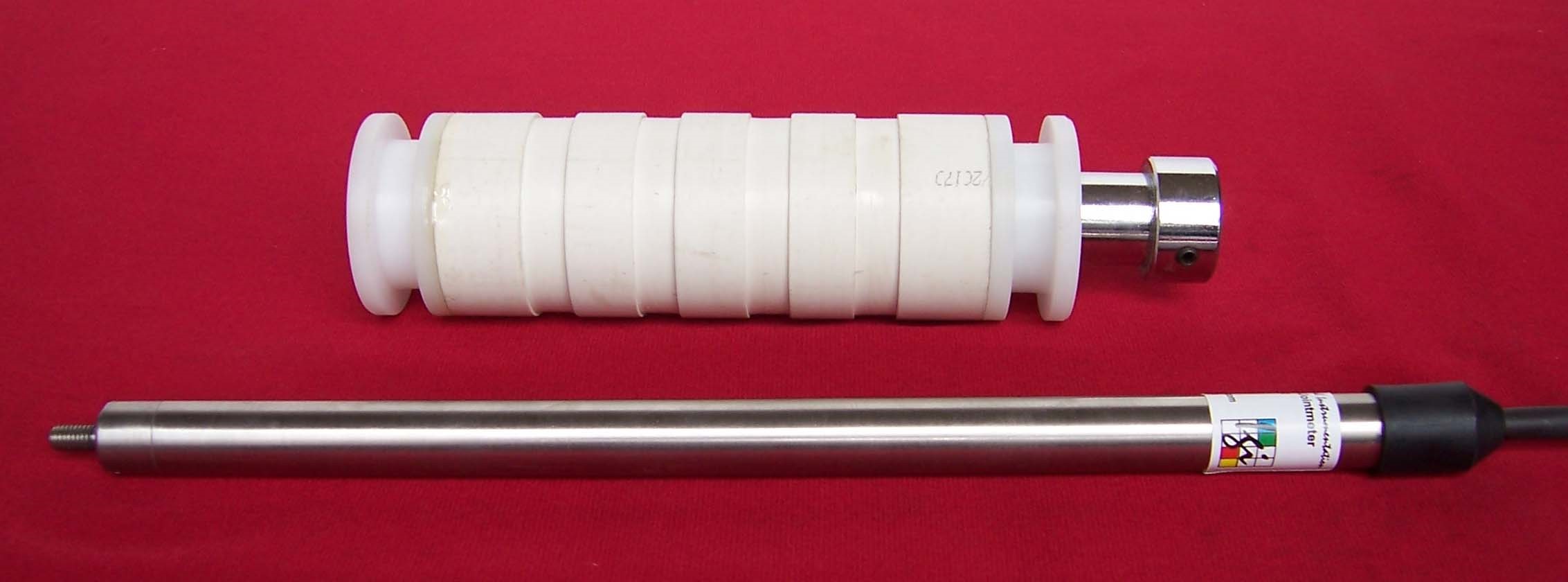

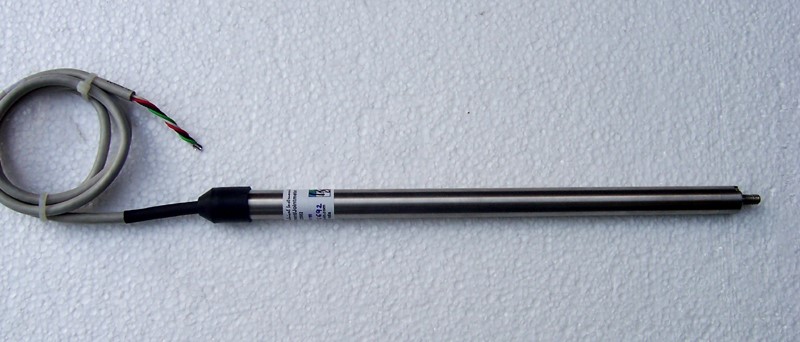

DISPLACEMENT TRANSDUCER
MODEL No. IGI - 1002

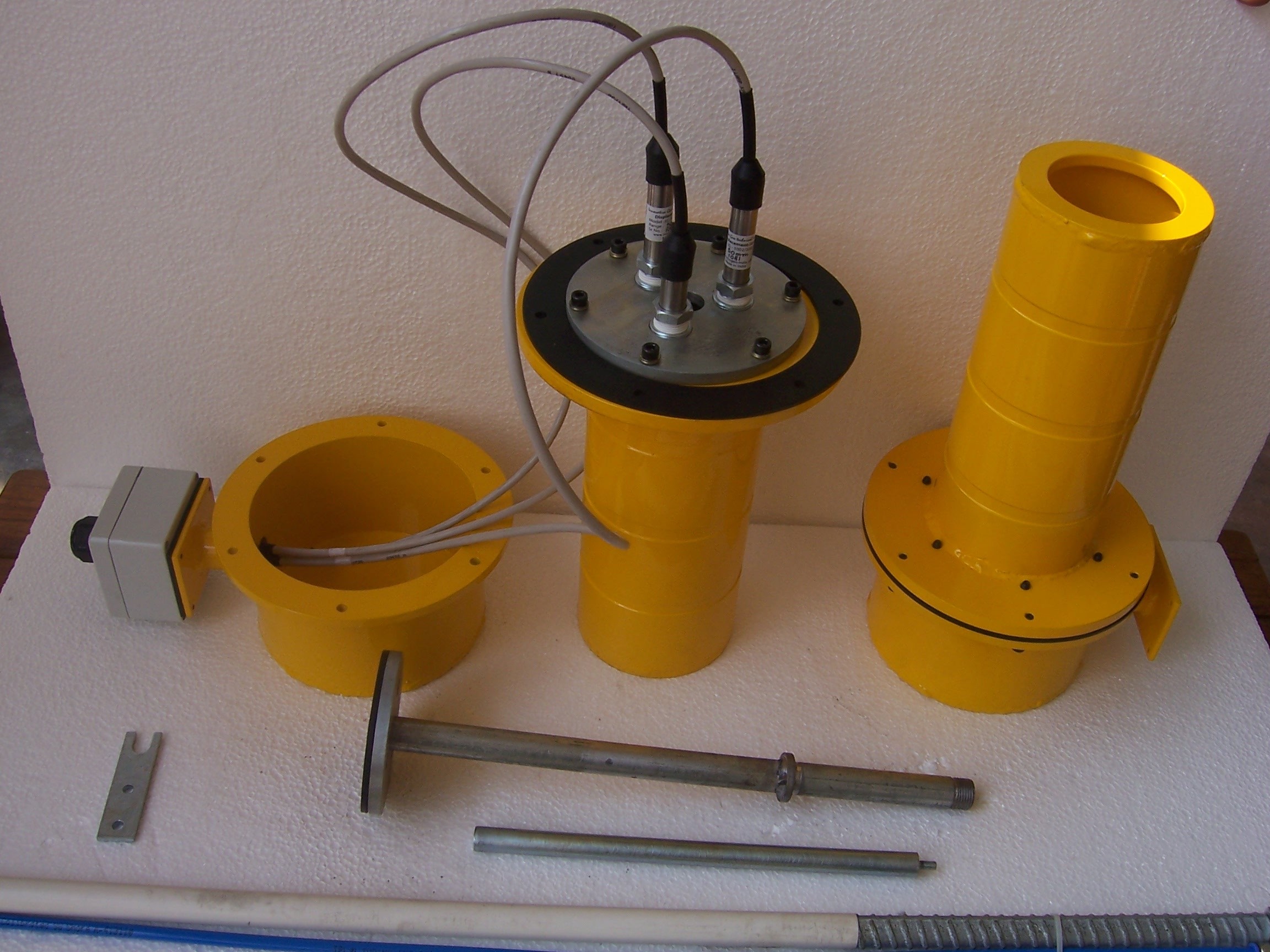

Innovative displacement transducer model IG-1002 is ideal for use in single and mutipoint bore hole extensometers. Its unique slimline design is very convenient for multipoint bore hole extensometers as a number of sensors may be installed within a single hole. The sensor also finds application in soil extensometers and roof convergence measurement. It may even be used in perimetric joint meters. Provision of gas discharge tube protects the sensor against surge and lightning.
SPECIFICATIONS :
| Standard Ranges | 50mm, 100 mm , 150mm. |
|---|---|
| Non-linearity %fs | 1%fs |
| Material (Outer Body) | Stainless steel |
| Operating Temperature | -10 to 50°C |
| Coil Resistance | 140 – 160 Ohm @ 25°C |
| Thermistor | YSI 44005 or equivalent (3k Ohm @ 25°C) |
| Surge Arrestor | Citel 90V Gas Discharge tube |
| Dimension | 16 mm dia |
| Cable | 1m , 4 core shielded. |
