TILT METER
MODEL NO. IGI - 1003

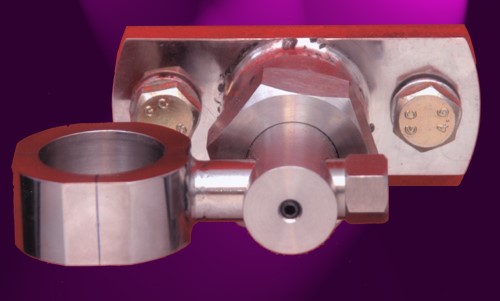

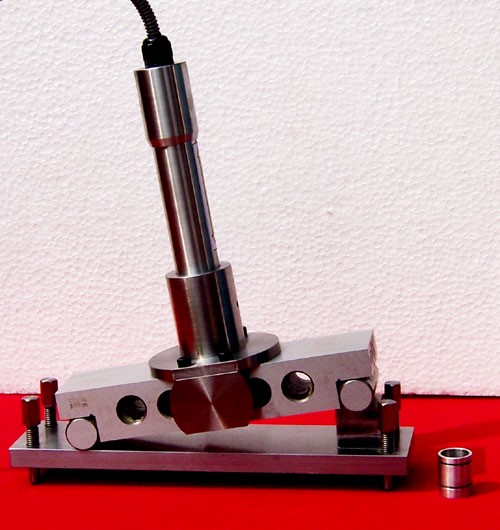

IGI Model IG-1003 tiltmeters are used to measure Tilt in structures like high rise buildings, old monuments, dams, retaining walls and slopes.
TYPICAL APPLICATION :
- Studying the effect of excavation on adjacent structure.
- Prediction of slope failure and remediation.
- Protection of monuments and old buildings while making metro tunnels under cities.
- Measuring tilt of Dam body in order to monitor parameters and ensure Dam Safety.
- Monitoring effect of water table on old buildings and towers.
- Monitoring stabilization measures such as pressure grouting.
- Evaluating performance of structures like beams, Bridges and Dams under load.
- Studying convergence and other movements in tunnels.
- Monitoring deflection and deformation in retaining walls.
SPECIFICATIONS :
| Standard Ranges | ±10 °) |
|---|---|
| Accuracy %fs | 1%fs |
| Material (Sensor body& Installation jig) | Stainless steel |
| Operating Temperature | -10 to 70°C |
| Coil Resistance | 140 – 160 Ohm @ 25°C |
| Thermistor | YSI 44005 or equivalent (3k Ohm @ 25°C) |
| Gas Discharge Tube(lightening arrestor) | Citel make 90V |
| Dimension | 38mm max dia x 220 mm length. |
| Weight: Sensor : Mounting Jig : | 1.0 kg 800 g |
| Sealing | IP-67 |
| Cable | 5m, 2 pair shielded cable with spiral conduit for UV protection. Extra cable length available on request. |
