Water seepage measurement system
MODEL No. IGI - 1700

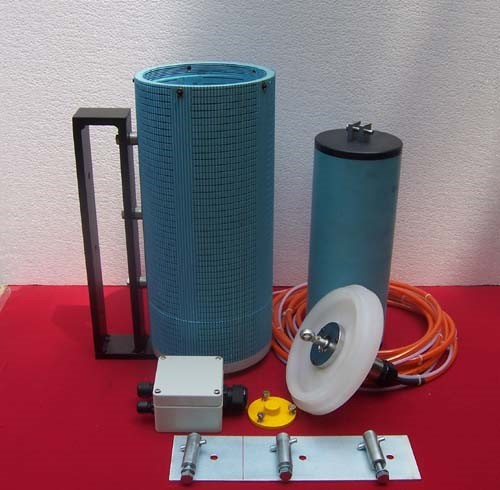

IGI Model 1700 water seepage measurement system has a force transducer, float assembly and screened outer casing. This system is used in conjunction with a weir. The force transducer measures the upthrust of water on the float and is calibrated in terms of mm of water column. It thi\us provides the reading of the weir in mm remotely.
The head of water is multiplied by a constant depending upon the type of weir to get the rate of flow of water in litre per second.

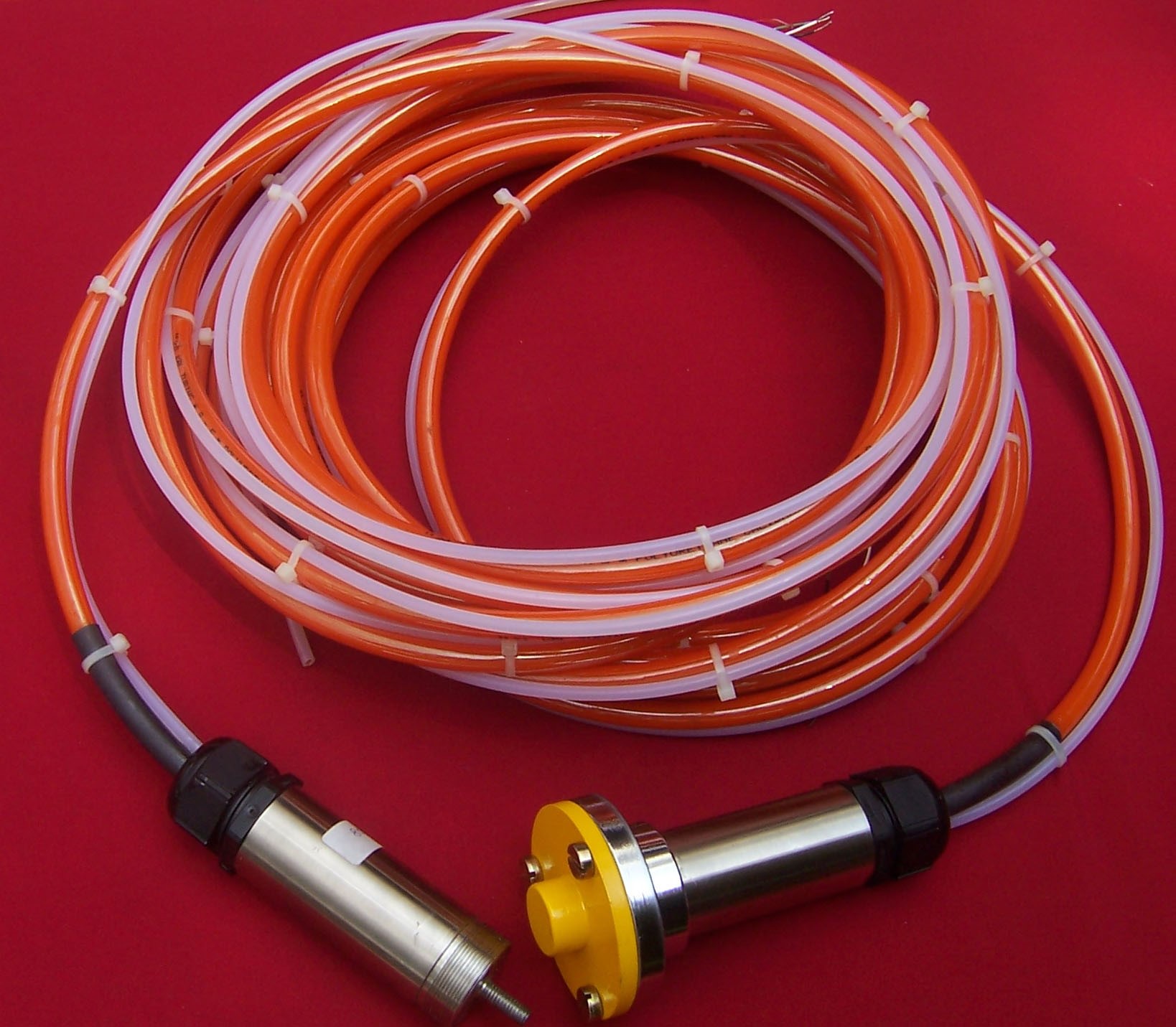

The force transducer is supplied with integral cable and air vent tube both of which terminate in an air- tight junction box with desiccant.
SPECIFICATIONS :
| Standard Ranges | 10,20,35,50,100,200 kg/cm2 (Lower and Higher ranges on request) |
|---|---|
| Accuracy | 1%fs; 0.5%fs |
| Material (Outer Body) | Stainless steel |
| Operating Temperature | -10 to 70°C |
| Coil Resistance | 140 – 160 Ohm @ 25°C |
| Thermistor | 3k Ohm @ 25°C |
| Dimension | (Pressure Cell)100 x 200 mm |
| Connecting/ Re-Pressurising | tube6mm diameter |
| Pressure transducer | 22 mm diameter |
| Cable | 1m, 4 core shielded PVC. |
